Work Holding Base Elements

NABEYA machine work holding fixtures are most suitable for all types of Machining Centers, Boring Machines!

Machine Tooling Blocks

E-159

TBS TGV220 TGV301S HTW220 HTW301S
  • All adjacent edges for edge locators and bottom face are ground to superior accuracies on squareness and parallelism
  • Each used faces have extra 0.4-0.5 mm for self-cut. Self-cut at customer’s using machines allows best relative accuracy on machining set-up.
  • Can be machined T-slot, tapped holes as users needs

Please click on image for Specifications



Specification

ORDER  NO. NO. BASE POST HEIGHT WEIGHT (Kg)
03681 TGV220 300 150.8±0.1 350 50
03682 TGV230 300 200.8±0.1 350 66
26957 TGV234 300 200.8±0.1 400 74
26958 TGV246 400 200.8±0.1 450 116
26959 TGV248 400 200.8±0.1 550 146
08169 TGV254 400 250.8±0.1 550 159
03685 TGV255 400 250.8±0.1 500 166
03686 TGV256 400 250.8±0.1 600 184
03687 TGV257 500 250.8±0.1 550 208
26960 TGV258 500 251±0.2 700 239
03689 TGV305 500 300.8±0.1 550 234
26961 TGV307 500 300.8±0.1 650 262
26962 TGV356 500 350.8±0.1 500 235
03692 TGV630 630 450.8±0.1 600 460
03693 TGV633 630 301±0.2 750 356
26963 TGV637 630 451±0.2 750 564
26964 TGV640 630 401±0.2 700 483
03694 TGV666 630 300.8±0.1 600 307
03695 TGV840 800 401±0.2 700 595
03696 TGV850 800 501±0.2 800 770
26965 TGV855 800 551±0.2 900 937
47851 TGV1050 1000 501±0.2 850 1120
47852 TGV1060 1000 601±0.2 1050 1385

Specification

ORDER  NO. NO. BASE POST HEIGHT WEIGHT (Kg)
03645 TBS220 300 150.8±0.1 350 58
03646 TBS230 300 200.8±0.1 350 76
26944 TBS234 300 200.8±0.1 400 84
26945 TBS246 400 200.8±0.1 450 134
26946 TBS248 400 200.8±0.1 550 164
04363 TBS254 400 250.8±0.1 550 190
00387 TBS255 400 250.8±0.1 500 185
00388 TBS256 400 250.8±0.1 600 215
00055 TBS257 500 250.8±0.1 550 233
26947 TBS258 500 251±0.2 700 272
00056 TBS305 500 300.8±0.1 550 264
26948 TBS307 500 300.8±0.1 650 295
26949 TBS356 500 350.8±0.1 500 266
03647 TBS630 630 450.8±0.1 600 504
03648 TBS633 630 301±0.2 750 393
26950 TBS637 630 451±0.2 750 614
26951 TBS640 630 401±0.2 700 527
03649 TBS666 630 300.8±0.1 600 337
03650 TBS840 800 401±0.2 700 634
03651 TBS850 800 501±0.2 800 832
26952 TBS855 800 551±0.2 900 998
50484 TBS1050 1000 501±0.2 850 1200
50485 TBS1060 1000 601±0.2 1050 1500

Specification

ORDER NO. NO. BASE POST HEIGHT WEIGHT (Kg)
03711 TGV301S 300 150.8±0.1 280 68
03712 TGV302S 300 200.8±0.1 300 82
26966 TGV303S 300 150.8±0.1 350 80
03713 TGV333S 300 175.8±0.1 325 76
03714 TGV400S 400 150.8±0.1 350 137
03715 TGV401S 400 200.8±0.1 450 184
03716 TGV402S 400 250.8±0.1 500 224
27397 TGV403S 400 150.8±0.1 600 209
03717 TGV500S 500 200.8±0.1 500 269
03718 TGV501S 500 250.8±0.1 550 312
03719 TGV502S 500 220.8±0.1 600 313
26967 TGV503S 500 251±0.2 700 371
03720 TGV631S 630 200.8±0.1 600 414
03721 TGV632S 630 251±0.2 700 488
03722 TGV634S 630 301±0.2 700 513
26968 TGV635S 630 251±0.2 800 552
03723 TGV800S 800 301±0.2 800 719
03724 TGV801S 800 401±0.2 800 782
26969 TGV802S 800 501±0.2 900 928
47853 TGV1030S 1000 301±0.2 800 1265
47854 TGV1040S 1000 401±0.2 700 1310

Specification

ORDER NO. NO. BASE POST HEIGHT WEIGHT (Kg)
03665 HTW220 300 150.8±0.1 350 56
03666 HTW230 300 200.8±0.1 350 74
26970 HTW234 300 200.8±0.1 400 82
26971 HTW246 400 200.8±0.1 450 131
26972 HTW248 400 200.8±0.1 550 161
08170 HTW254 400 250.8±0.1 550 185
03669 HTW255 400 250.8±0.1 500 180
03670 HTW256 400 250.8±0.1 600 210
03671 HTW257 500 250.8±0.1 550 230
26973 HTW258 500 251±0.2 700 268
03673 HTW305 500 300.8±0.1 550 260
26974 HTW307 500 300.8±0.1 650 289
26975 HTW356 500 350.8±0.1 500 262
03676 HTW630 630 450.8±0.1 600 500
03677 HTW633 630 301±0.2 750 390
26976 HTW637 630 451±0.2 750 609
26977 HTW640 630 401±0.2 700 522
03678 HTW666 630 300.8±0.1 600 334
03679 HTW840 800 401±0.2 700 630
03680 HTW850 800 501±0.2 800 827
26978 HTW855 800 551±0.2 900 993

Specifications

ORDER  NO. NO. BASE POST HEIGHT WEIGHT (Kg)
03697 HTW301S 300 150.8±0.1 280 73
03698 HTW302S 300 200.8±0.1 300 87
26979 HTW303S 300 150.8±0.1 350 87
03699 HTW333S 300 175.8±0.1 325 81
03700 HTW400S 400 150.8±0.1 350 150
03701 HTW401S 400 200.8±0.1 450 201
03702 HTW402S 400 250.8±0.1 500 241
27398 HTW403S 400 150.8±0.1 600 231
03703 HTW500S 500 200.8±0.1 500 291
03704 HTW501S 500 250.8±0.1 550 334
03705 HTW502S 500 220.8±0.1 600 341
26980 HTW503S 500 251±0.2 700 399
03706 HTW631S 630 200.8±0.1 600 441
03707 HTW632S 630 251±0.2 700 523
03708 HTW634S 630 301±0.2 700 548
26981 HTW635S 630 251±0.2 800 583
03709 HTW800S 800 301±0.2 800 764
03710 HTW801S 800 401±0.2 800 817
26982 HTW802S 800 501±0.2 900 967
TBL220 TBL301S
  • Much lower weight compared with standard Work holding base elements (TBS Type) (30-40% lighter
  • All adjacent edges for edge locators and bottom face are ground to superior accuracies on squareness and parallelism
  • Extra 0.8 mm of column size for user’s self-cut on using machine
  • Special rib construction inside for keeping rigidity

Please click on image for Specifications



Specifications

ORDER  NO. NO. BASE POST HEIGHT WEIGHT  (Kg)
58981 TBL220 300 150.8 350 40
50260 TBL241 400 200.8 600 120
50261 TBL242 400 250.8 650 149
69375 TBL243 400 200.8 700 135
69376 TBL244 400 250.8 700 158
50262 TBL258 500 250.8 700 180
50263 TBL307 500 300.8 650 190
69377 TBL308 500 300.8 800 223
69378 TBL309 500 350.8 800 247

Specifications

ORDER  NO. NO. BASE POST HEIGHT WEIGHT (Kg)
58984 TBL301S 300 150.8 280 55
50264 TBL403S 400 150.8 600 150
50265 TBL404S 400 200.8 600 160
50266 TBL405S 400 250.8 600 170
69379 TBL406S 400 150.8 700 180
50267 TBL503S 500 220.8 700 225
50268 TBL504S 500 250.8 700 230
69380 TBL505S 500 200.8 800 260

Machine Tooling Blocks – Economy Type

E-179

TBE300 TBE301S
  • NABEYA introduces economical self-cut type of Tooling Blocks
  • Supplied without hand scraped and ground finish with standard height models. Enough accuracies between base and column are maintained.
  • Supplied without hand scraped and ground finish with standard height models. Enough accuracies between base and column are maintained.

Please click on image for Specifications



Specifications

ORDER  NO. NO. BASE POST HEIGHT WEIGHT (Kg)
26912 TBE300 300 150.8 350 58
26913 TBE400 400 250.8 500 185
26914 TBE500 500 300.8 550 264
26915 TBE630 630 450.8 600 504
26916 TBE800 800 501 800 832

Specifications

ORDER  NO. NO. BASE POST HEIGHT WEIGHT (Kg)
26917 TBE300S 300 150.8 280 74
26918 TBE400S 400 250.8 500 245
26919 TBE500S 500 250.8 550 337
26920 TBE630S 630 251 700 527
27878 TBE633S 630 301 700 552
26921 TBE800S 800 401 800 821

Machine Tooling Blocks Crossed Column Type

E-359

TJS300
  • Designed for machining 3 faces at one time without any interference of cutters and spindle
  • Each used faces have extra 0.4-0.5 mm for self-cut
  • Customer can machine additionally required spec of T-slots and holes

Please click on image for Specifications



Specifications

ORDER  NO. NO. BASE POST HEIGHT WEIGHT (Kg)
26899 TJS300 300 200.8 90 70
26900 TJS400 400 250.8 100 155
26901 TJS500 500 300.8 150 250
26902 TJS630 630 400.8 200 440
26903 TJS800 800 501 300 690

Machine Tooling Blocks Straight Column Type

E-189

TSS
  • Overhung type of tooling block (E-559). Smaller size of base, can be fitted on smaller size of machine pallet for Horizontal machining center
  • Useful for shortening of idle time

Please click on image for Specifications



Specifications

ORDER  NO. NO. BASE POST HEIGHT WEIGHT (Kg)
27140 TSS400 400 500 50 320
27141 TSS500 500 600 50 527

Machine Tooling Block Overhung Type

E-559

TOS
  • NABEYA designed overhung type tooling block to accommodate as many as workpieces on the 2 faces. More workpieces at one set-up means the shortening of idle time of machining process.

Please click on image for Specifications



Specifications

ORDER  NO. NO. BASE POST HEIGHT WEIGHT (Kg)
26904 TOS400 400 550 200.8 280
26905 TOS500 500 630 200.8 380
26906 TOS630 630 800 301 665
26907 TOS800 800 1000 301 1130

Height Base Type

E-369

HB
  • Specifically designed for Horizontal machining centers
  • Convenient to machine thinner workpieces

Please click on image for Specifications



Specifications

ORDER  NO. NO. BASE POST HEIGHT WEIGHT (Kg)
26908 HB400T 400 150 250 70
26909 HB500T 500 150 300 105
26910 HB630T 630 150 400 170
26911 HB800T 800 150 500 265

Machine T-Slotted Angle Plates Type

E-128M

GTP400 GTP1

Specifications

ORDER NO. NO. DEPTH HEIGHT WIDTH NUMBER OF T-SLOT FINISH WEIGHT (Kg)
03806 GTP-400 200 400 360 4 50
03807 GTP-500 250 500 500 4 156
03808 GTP-630 300 600 600 3 219
03809 GTP-800 400 800 800 5 526
  • These angle plates are most suitable for use on machining center pallet, where an accurately vertical surface for work mounting is required. T-slots are grooved on the surface in close tolerance in width and center distance to accept T-nuts for clamping elements for work holding.
  • Material used is high tensile, close grained iron casting completely stress relieved by heat treatment and designed for highest rigidity with thick angle plates and ribs to
  • withstand heaviest power and impact in cutting.

Please click on image for Specifications



Specifications

ORDER NO. NO. DEPTH HEIGHT WIDTH NUMBER OF T-SLOT FINISH WEIGHT  (Kg)
00219 GTP1 150 300 300 2 53
00233 GTP2 200 400 360 4 88
00234 GTP3 300 600 600 3 230
00235 GTP4 450 900 900 5 680
00236 GTP5 600 1200 1200 7 1300
00237 GTP6 450 900 450 5 309
03360 GTP7 150 300 400 2 66
03361 GTP8 250 500 500 4 165

Machine Pallet Sub Table Type

E-169

MC400P-75T MC400P-50P MC400P-50H

Please click on image for Specifications



Specifications

ORDER  NO. NO. WIDTH LENGTH THICKNESS WEIGHT  (Kg)
03766 MC400P-75T 400 400 75 65
03767 MC400P-90T 400 400 90 79
03768 MC500P-75T 500 500 75 105
03769 MC500P-90T 500 500 90 126
03770 MC630P-75T 630 630 75 177
03771 MC630P-100T 630 630 100 240
03772 MC800P-75T 800 800 75 289
03773 MC800P-110T 800 800 110 402

Specifications

ORDER NO. NO. WIDTH LENGTH THICKNESS WEIGHT (Kg)
03786 MC400P-50P 400 400 50 57
03787 MC400P-75P 400 400 75 83
03788 MC400P-90P 400 400 90 97
03790 MC500P-50P 500 500 50 88
03789 MC500P-75P 500 500 75 127
03791 MC500P-90P 500 500 90 148
03792 MC630P-50P 630 630 50 141
03793 MC630P-75P 630 630 75 205
03794 MC630P-100P 630 630 100 268
03795 MC800P-50P 800 800 50 224
03796 MC800P-75P 800 800 75 325 665000
03797 MC800P-110P 800 800 110 438

Specifications

ORDER  NO. NO. WIDTH LENGTH THICKNESS WEIGHT (Kg)
03774 MC400P-50H 400 400 50 55
03775 MC400P-75H 400 400 75 80
03776 MC400P-90H 400 400 90 94
03777 MC500P-50H 500 500 50 86
03778 MC500P-75H 500 500 75 124
03779 MC500P-90H 500 500 90 145
03780 MC630P-50H 630 630 50 139
03781 MC630P-75H 630 630 75 202
03782 MC630P-100H 630 630 100 264
03783 MC800P-50H 800 800 50 222
03784 MC800P-75H 800 800 75 322
03785 MC800P-110H 800 800 110 434

Machine Sub Plates Type

E-162

SBP
  • Sub-plates used on vertical machining centers and larger milling machines
  • They protect the surface of machine table and provide larger space for setting Workpieces and minimize loss of operating time of expensive machine tools.

Please click on image for Specifications



Specifications

ORDER  NO. NO. LENGTH WIDTH THICKNESS NUMBER OF T-SLOT WEIGHT (Kg)
26922 SBP-0540 550 400 50 3 65
26923 SBP-0626 600 260 50 3 44
26924 SBP-0645 600 450 75 4 112
26925 SBP-0830 800 300 75 3 101
26926 SBP-0855 800 550 75 5 180
26927 SBP-0950 900 500 75 5 185
26928 SBP-0960 900 600 90 5 253
26929 SBP-1060 1000 600 95 5 301
26930 SBP-1260 1200 600 95 5 360
26931 SBP-1355 1300 550 95 5 364
26932 SBP-1570 1500 700 95 5 551

Tooling Block with CV Precision Machine Vises Type

E-9901

LTCV
  • Most practical and flexible jig for Horizontal machining centers
  • Models available to suit pallet size
  • Mounting based on JIS standard. Mori Seiki, Mazak, Makino, Okuma like all Japanese machine models can accept.

Please click on image for Specifications

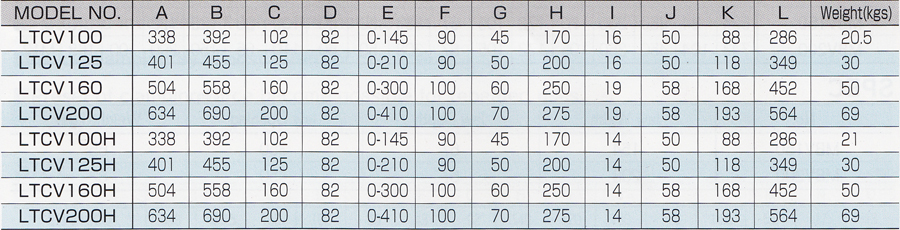

Specifications
