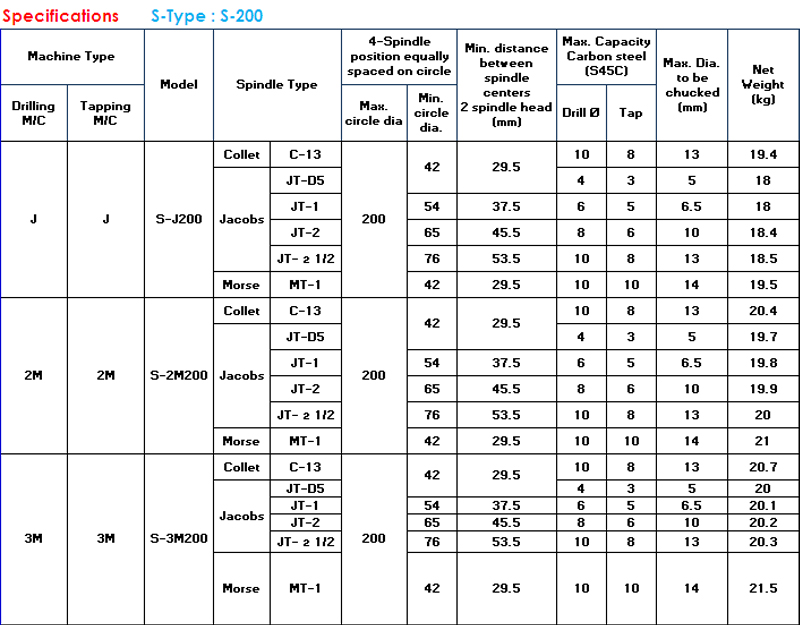

S - Type 200

MIYAKAWA S Type Heads are extremely popular and were first in the world to be used by Japanese radial drill manufacturers since 1950s. All industry segments use them to improve productivity and drilling precision with each radial drilling machine. They are available in wide range for every radial drill application.

How to Order

  • Confirm machine mounting (Quill size, Taper)
  • Confirm drilling, tapping size
  • Material for drilling, tapping
  • Spindles positions (Drawing)
  • Mounting dimensions (A,B,C,D,E & F)
    Please inform following mounting details
  1. A: Spindle Quill Diameter
  2. B: Spindle diameter
  3. C: Length from spindle face
  4. D: Spindle quill flange diameter
  5. E: Spindle quill flange width
  6. F: Jacobs / Morse Taper Size
Jacobs Taper Morse Taper No. MT Morse Taper No. MT

Construction Details

S-J200 S-2 M200 S-3 M200
