SUGINO Selfeeder & Synchro Tapper TM

SUGINO is Japan’s highly popular manufacturer for Drilling and Tapping feed units. These units are ideal for automation and labor saving in drilling operations. A wide range of drilling units is available for a variety of applications.

MIYAKAWA promotes Sugino make feed units with Miyakawa make Multi-spindle Drilling/ Tapping units. This is an ideal combination to increase productivity with precision in machining quality. We offer total solution to Customers as well as machine tool manufacturers of Sugino unit and multi-head units as per part drawings; we can also offer total SPM solution to meet productivity requirements.

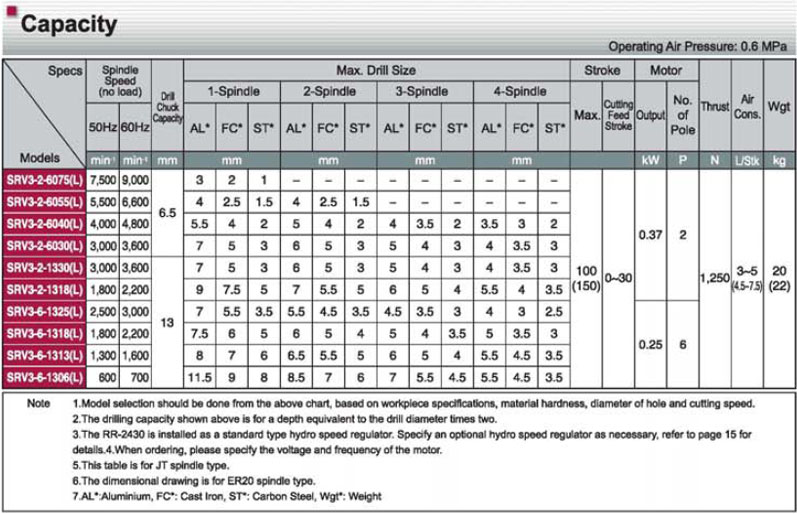

SRV3

Substantial cutting stroke of 30 mm with standard model at 577 mm and long stroke model at 677 mm of total overall length available for wide variety of applications.

Features

  • Lightweight and simple construction
  • Models available to suit high to low speed requirements
  • Good model for Drilling SPM
  • Can be mounted on an exclusive drill stand for processing after machining centers
  • Multi-head capability
  • Allows precision small hole drilling

Please click on image for Specifications

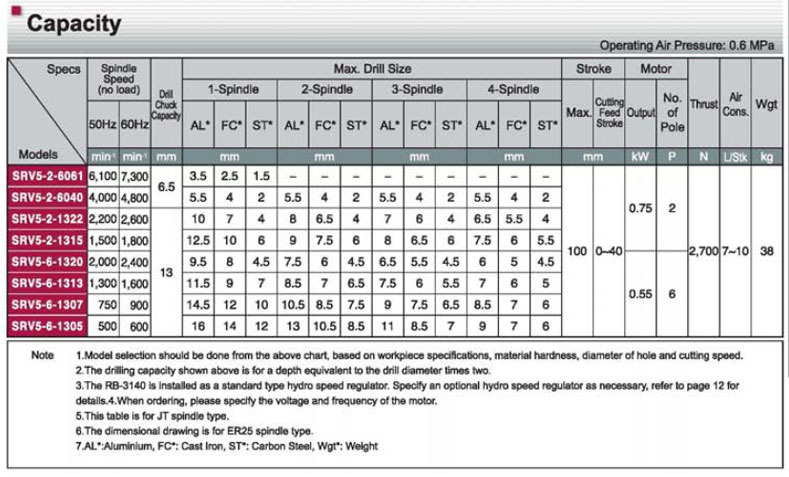

SRV5

  • Heavy Duty Model with 0.75 kW motor
  • High Torque and Powerful Thrust

Features

  • This is the most powerful heavy-duty model in the series.
  • Miyakawa multi-spindle drill heads increases productivity with drastic reduction in production costs
  • Large hole drilling capability

Please click on image for Specifications

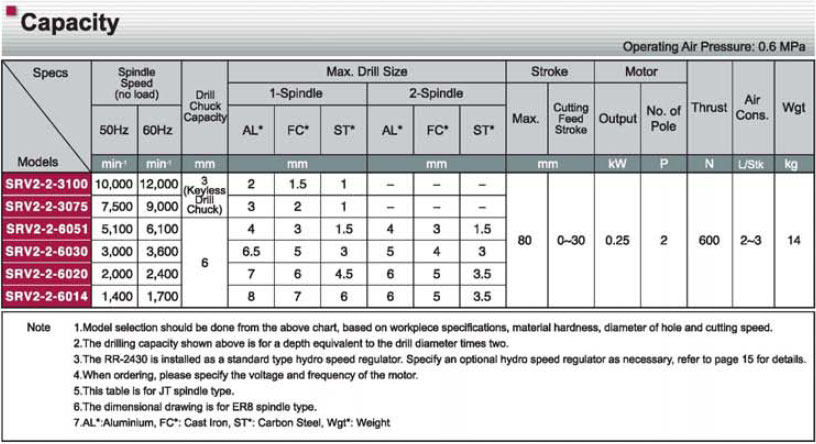

SRV2

  • Smallest in the Series
  • Most Suitable for Small Hole Drilling

Features

  • Most compact model with 505 mm overall length
  • Lightweight design of just 14 kg
  • Designed for next generation smaller parts production .

Please click on image for Specifications

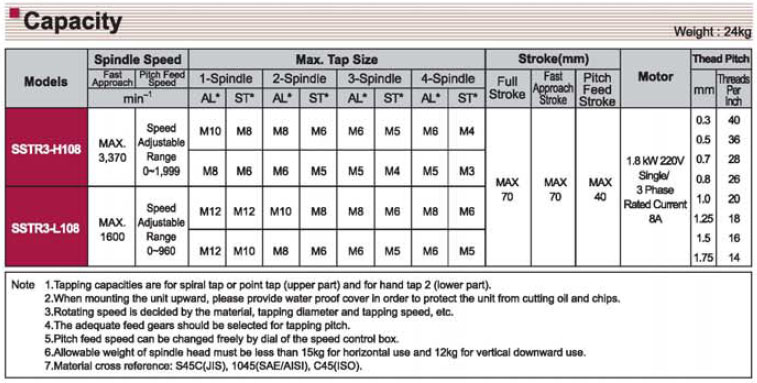

SSTR3

  • Multi-Head Tapping
  • Small Hole Tapping

Features

  • Variable speed control
  • 4-Spindle multi-head allows M6 tapping in steel and M8 in aluminium
  • Precision combination of Miyakawa Multi-head and Sugino synchro tapper allows highly productive tapping with reduction in production costs
  • MIYAKAWA offers total solution of SSTR3 and Multi-Tap Head as per part drawing or a complete SPM machine to suit productivity

Please click on image for Specifications

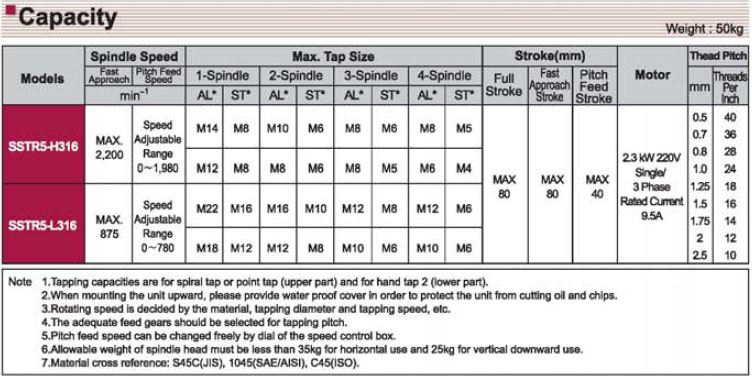

SSTR5


  • Multi-Head Tapping
  • Total Rigid Construction

Features

  • Variable speed control
  • Heavy duty Multiple head tapping capability
  • 4-Spindle multi-head allows M6 tapping in steel and M12 in aluminium
  • 2-Spindle multi-head allows M10 tapping in steel and M16 in aluminium
  • Precision combination of Miyakawa Multi-head and Sugino synchro tapper allows highly productive tapping with reduction in production time.
