C -Type

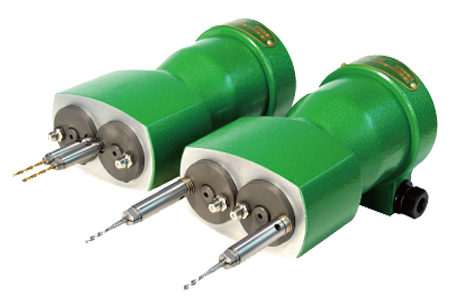

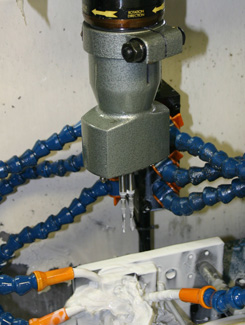

Miyakawa’s Popular C Type 2 Spindle Heads

MIYAKAWA’s C-type Adjustable 2 Spindle heads multi-drill/ tap attachments are globally popular for high speed, high precision applications.

  • High Speed
  • and
  • Precision

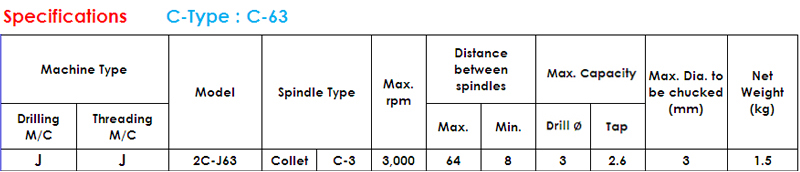

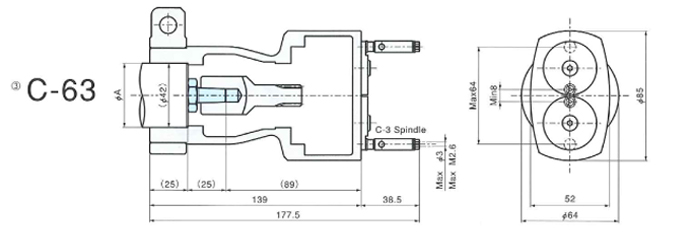

C- 63   Type

Distance.

8

~

64  mm

Dia.

Max.

3 mm

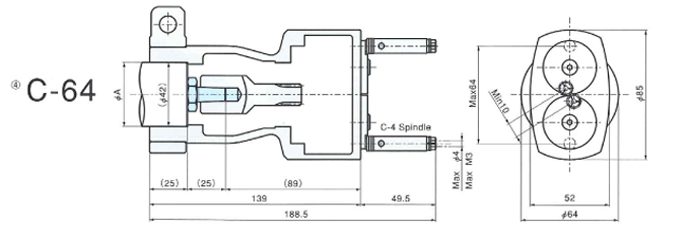

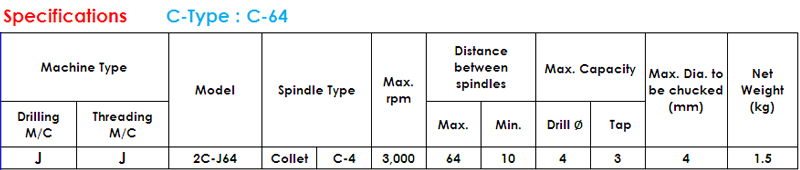

C - 64   Type

Distance

10

~

64  mm

Dia.

Max.

4 mm

Features:

  • Highly rigid construction. Main gear mounted on main spindle drives 2 fixed gears. The spindle gears are moved around the middle gears, being engaged and the spindle eccentrically assembled to the circular spindle holders, can be clamped on each spindle orbit
  • The C-Type gear box has closed construction to prevent chips entry and hence this attachment can be installed horizontally and vertically both.
  • The revolution ratio to the machine spindle is 1:1. Hence same machine rpm is applicable.
  • The spindle holders of model 86 and 110 are mounted on the rotary lower body, which can be rotated and compensate the direction of two spindles after setting the distance between them.
  • 3 and 4 spindle heads available on request

Applications

  • Automobile parts
  • Electrical parts for House application
  • Industrial Electrical parts
  • Plastic parts

How to Order

  • Confirm machine mounting (Quill size, Taper)
  • Confirm drilling, tapping size
  • Material for drilling, tapping
  • Spindles positions (Drawing)
  • Mounting dimensions (A,B,C,D,E & F)
    Please inform following mounting details
  1. A: Spindle quill diameter
  2. B: Spindle diameter
  3. C: Length from spindle face
  4. D: Spindle quill flange diameter
  5. E: Spindle quill flange width
  6. F: Jacobs/ Morse Taper Size
Jacobs Taper Morse Taper No. MT Morse Taper No. MT

C Type- 63 / 64


Please click on image for Specifications

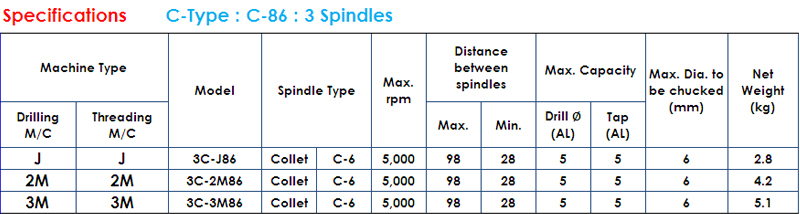

C - Type 86

2 Spindle

3 Spindle

4 Spindle

2C-J86C-6 3C-86C-6 4C-J86-6

Please click on image for Specifications

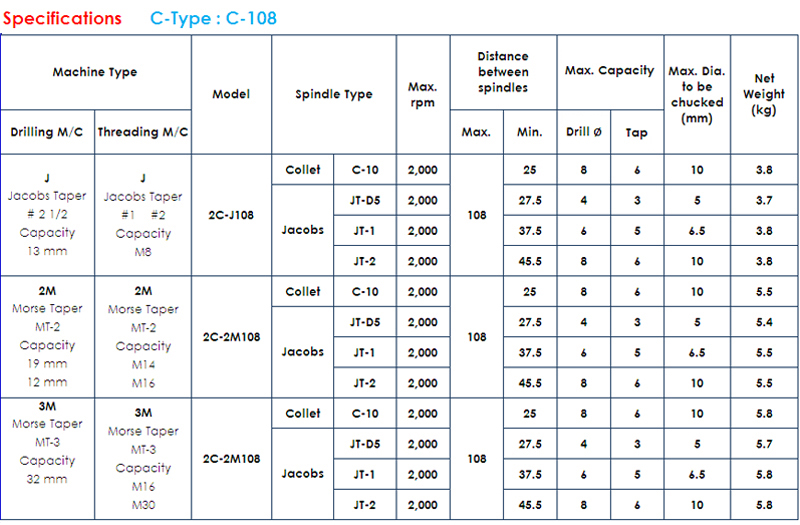

C - Type 108

2 Spindle

2C-J108C-10

Please click on image for Specifications

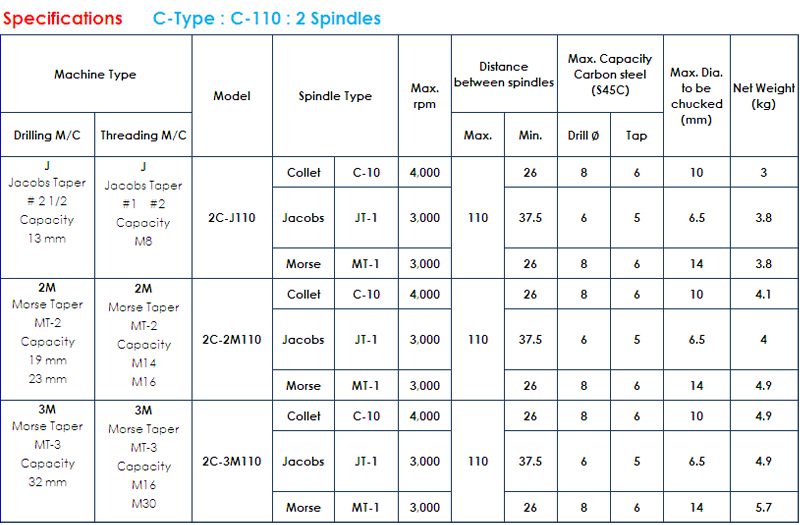

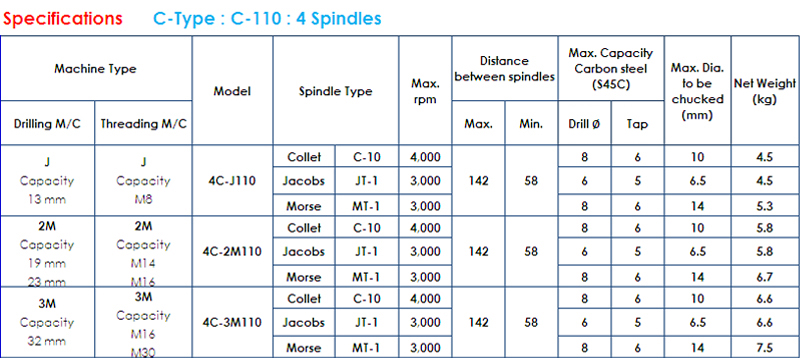

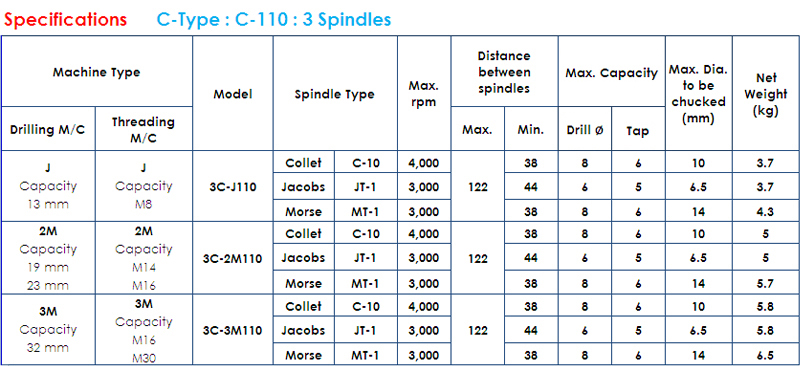

C - Type 110

2 Spindle

3 Spindle

4 Spindle

2C-J110C-10 3C-J110C-6 4C-J110C-6

Please click on image for Specifications
